Frozen Beverage Machine Service – Austin, TX 07.24.26
Setpoint Services performed commercial refrigeration maintenance and diagnostics on a Taylor RC25N-27 remote-condensing margarita machine at Cover 3 – Anderson Lane in Austin, Texas after the customer reported the machine was intermittently shutting down during operation.

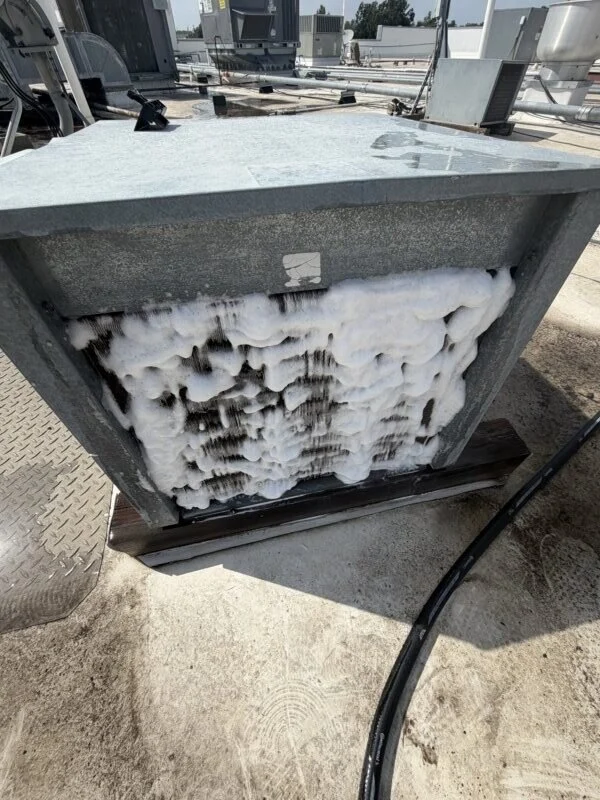

Upon arrival, the remote air-cooled condenser was found heavily impacted with dirt and debris. The condenser cabinet and refrigerant piping were extremely hot to the touch, indicating restricted heat rejection and elevated operating temperatures. The condenser coil was thoroughly cleaned using commercial coil cleaner and water to restore proper airflow and improve condenser performance.
Following the condenser cleaning, the refrigeration system was restarted and monitored through a complete operating cycle. Final operating conditions stabilized at approximately 16 PSI suction pressure and 325 PSI discharge pressure with a 90°F outdoor ambient temperature, confirming improved condenser performance after cleaning.
While monitoring the equipment, Setpoint Services observed the condensing unit complete a normal refrigeration pump-down cycle when the dispenser satisfied and closed the liquid-line solenoid. The low-pressure control shut the condensing unit down as designed, confirming normal system operation rather than a refrigeration fault.
During the inspection, approximately 25% of the rear condenser coil was found to have severely flattened fins. Evidence indicates the condenser fan blade previously contacted the coil, permanently restricting airflow through a significant portion of the condenser. Although the system was operating at the time of departure, the damaged condenser coil continues to reduce heat rejection and may contribute to elevated head pressures and reduced reliability during peak summer temperatures.
Additional recommendations include replacing the deteriorated suction-line insulation, replacing the compressor start components, installing the missing electrical disconnect faceplate, and considering replacement of the complete remote condenser due to the extensive condenser coil damage. This maintenance visit included condenser cleaning and operational testing only. Internal cleaning of the margarita machine barrel and product-contact components is outside the scope of Setpoint Services' commercial refrigeration maintenance services. The system was operating normally and completing its designed pump-down cycle at the time of departure, with continued monitoring recommended until the damaged condenser can be repaired or replaced.
