Replaced Failed Compressor on Rheem Rooftop Unit in Austin, TX
Near San Jacinto Blvd
Service Date: April 3, 2026 — Austin, TX

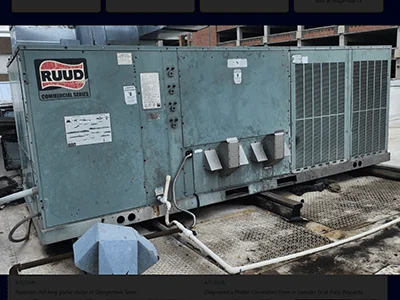

Setpoint Services responded to a commercial HVAC service call in Austin, TX where a rooftop unit had stopped providing cooling. The equipment on-site was a Ruud/Rheem Commercial Series packaged rooftop unit (Model: RKKB-A180CL25E). Upon diagnosis, our technician confirmed that the Copeland Scroll compressor on Circuit #3 had suffered a terminal blowout — a catastrophic failure mode that destroyed the electrical connection to the compressor windings and resulted in complete refrigerant loss, leaving that circuit fully inoperable.
What We Found
Terminal burnout is one of the more severe compressor failure modes in commercial refrigeration and HVAC systems. When a scroll compressor terminal blows out, refrigerant escapes rapidly and the system loses all charge on the affected circuit. In this case, Circuit #3 — running a Copeland Scroll ZR42K5E-TF5-800 — had to be fully replaced before the system could be returned to service. Both suction and liquid line filter driers were also replaced as part of the repair to ensure system cleanliness after the failure event.
Work Performed
- Recovered any remaining refrigerant per EPA guidelines
- Removed failed Copeland Scroll compressor from Circuit #3
- Installed new replacement compressor
- Installed new suction line filter drier
- Installed new liquid line filter drier
- Pressure tested system with dry nitrogen to confirm integrity and no leaks
- Performed triple evacuation to remove moisture and non-condensables
- Recharged system with refrigerant to factory specifications
- Started and tested Circuit #3 — confirmed proper operation before leaving the site
Commercial HVAC Repair in Austin, TX
Packaged rooftop units are workhorses in commercial settings — and when a compressor fails, the business feels it immediately. Setpoint Services specializes in commercial HVAC repair across Austin and the surrounding Central Texas area, including compressor replacements, refrigerant system restoration, and full unit diagnostics. Whether it’s a single failed circuit or a system-wide issue, our technicians are equipped to get your equipment back online.
Call us at 512-992-5537 or visit our contact page to schedule service.
Setpoint Services — Keeping Austin’s Commercial Equipment Running Right.
